Introduction

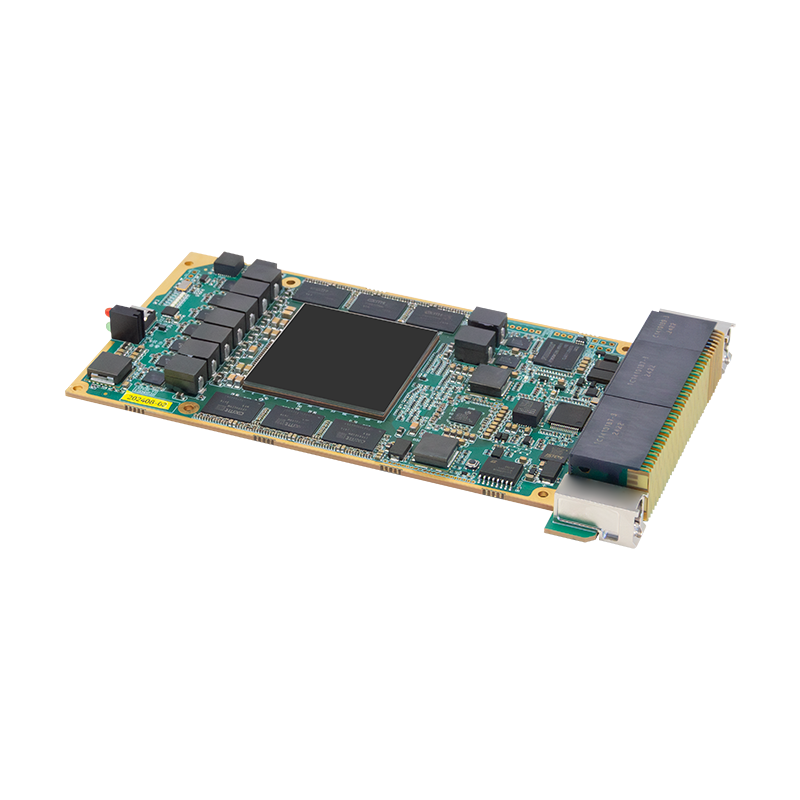

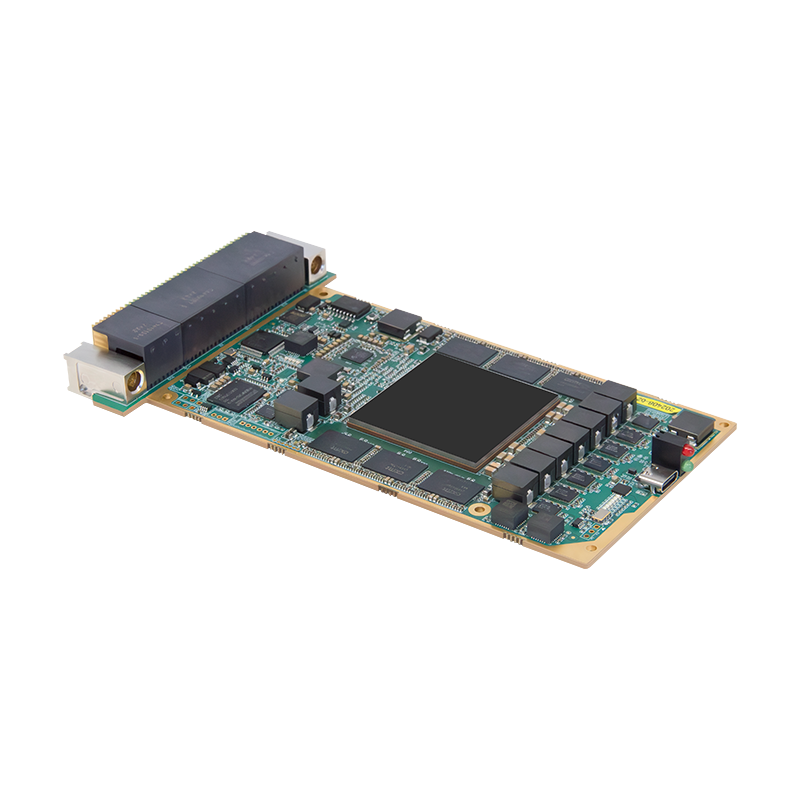

AIV3X is a high-performance industrial-grade edge AI intelligent computing card based on the Ascend 310P processor, capable of delivering up to 176 TOPS INT8 computing performance, meeting the requirements of edge AI inference application scenarios. It adopts a 3U structural design, complies with the VPX board card requirements, and supports both conduction cooling and air cooling for heat dissipation.
Specifications
| Processor | Ascend 310P |
| AI Compute | 176 TOPS INT8 |
| CPU | ARMv8.2 16core TaishanV200M@max. 1.9 GHz |
| Memory | 48 GB 256bit LPDDR4X |
| Storage | 128G EMMC |
|
Encode/Decode |
Video Encode: 24x 1080P@30fps/3x 4K@60fps H.264/H.265
Video Decode: 96x 1080P@30fps/12x4K@60fps H.264/H.265
JPEG Encode: 4K@192fps (FHD@1024fps)
JPEG Decode: 4K@384fps (FHD@2048fps)
supports up/down scaling, crop, Chroma up/down sampling, color space conversion（FHD 4320FPS）
|
| High-Speed Interface | PCIE x16，compatible with PCIE x8 |
| Other I/O | Type-C |
| Power | ≤120W |
| Dimensions |
100 mm x 160 mm |
|
Weight |
≤1KG |
|
Input Voltage |
DC 12V |
|
Operating Temperature |
-40℃~ +65℃ |
| OS |
銀河麒麟（EP）/OpenEuler（RC） |
