        NVIDIA Jetson 擴展載板

        • Jetson Orin NX super/Orin Nano super國產開發板
        • Jetson Orin NX super/Orin Nano super國產開發板
        • Jetson Orin NX super/Orin Nano super國產開發板
        • Jetson Orin NX super/Orin Nano super國產開發板
        Jetson Orin NX super/Orin Nano super國產開發板Jetson Orin NX super/Orin Nano super國產開發板Jetson Orin NX super/Orin Nano super國產開發板Jetson Orin NX super/Orin Nano super國產開發板

        Jetson Orin NX super/Orin Nano super國產開發板

        板卡尺寸:104mm * 90mm * 23mm
        電源輸入:DC 9V~19V
        工作溫度:0 ~ +50°C
        重量:81g

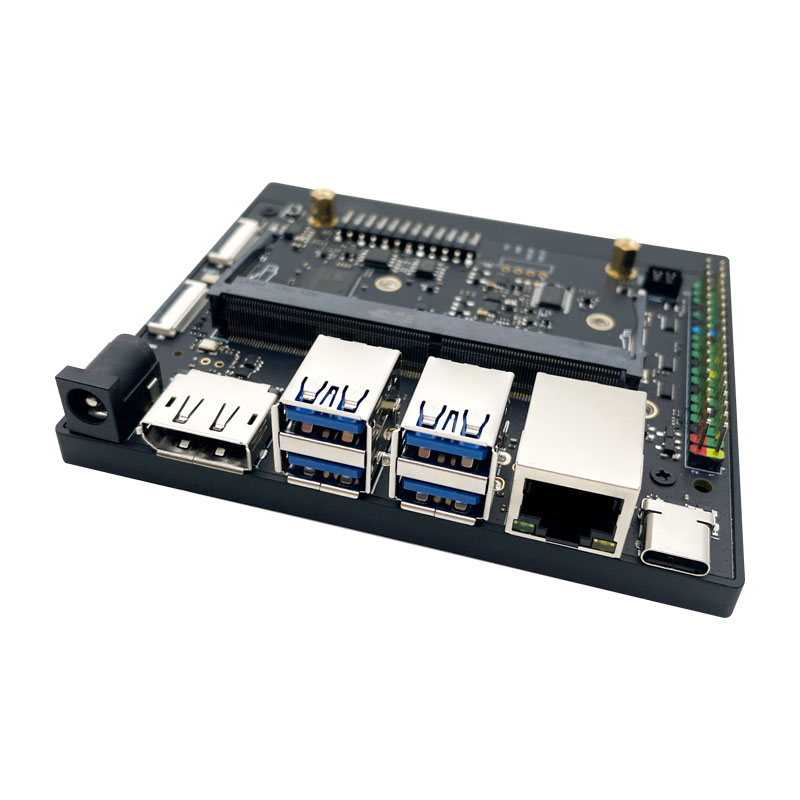

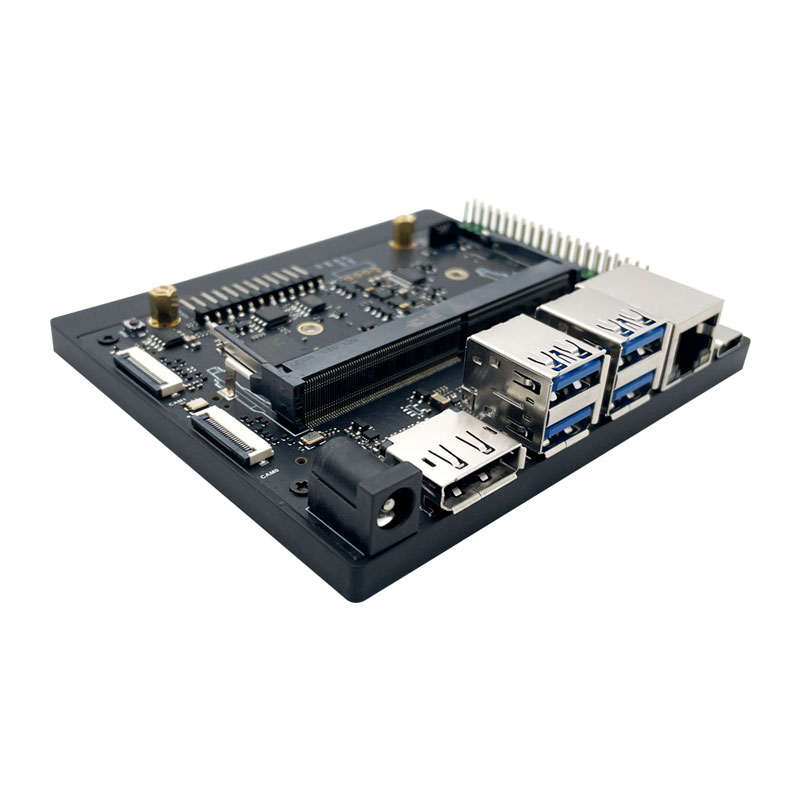

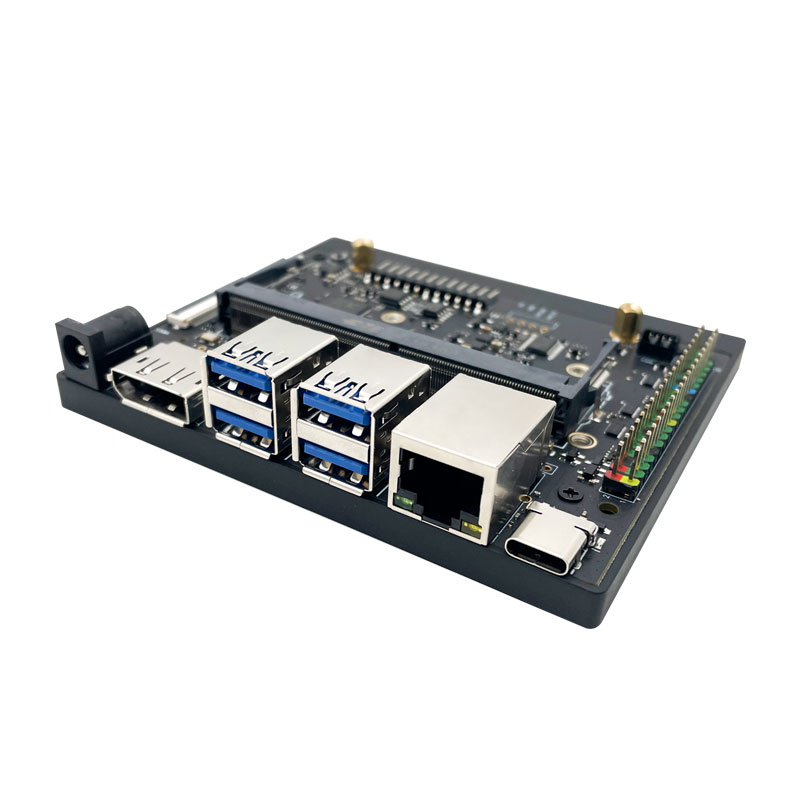

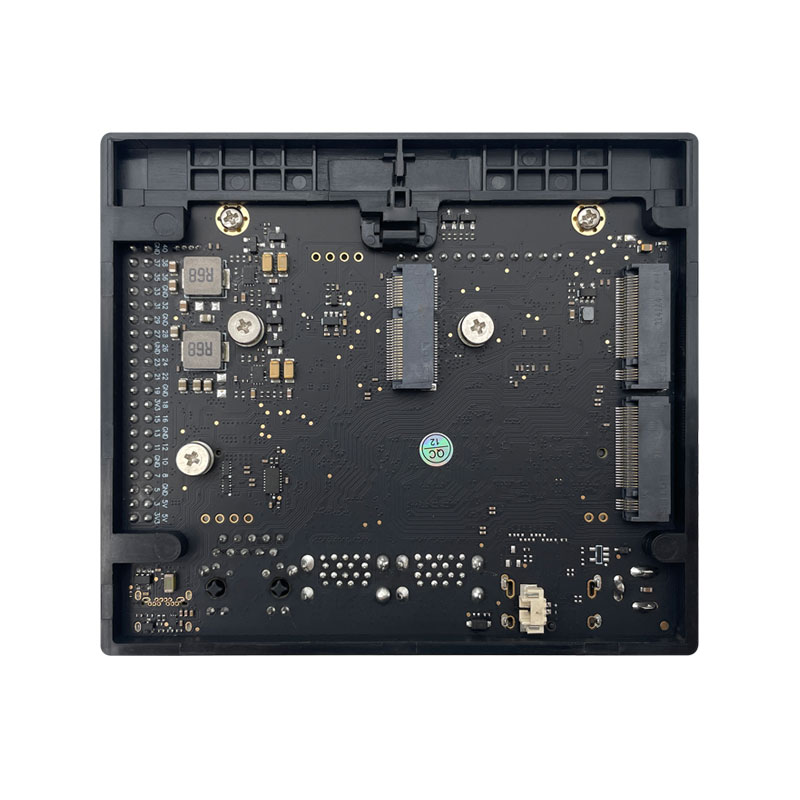

        Orin NX super/Orin Nano super 國產開發板

        Orin NXsuper/Orin Nano super 國產開發板是基于NVIDIA Jetson Orin NX super/Orin Nano super 核心模組設計,提供 M.2、 HDMI、USB 等更多豐富的接口

        USB 3.2 Type-A
        4

        Type-C

        1
        RJ45 1
        M.2 E key
        1
        M.2 M key
        1

        CSI camera

        2x MIPI CSI-2

        DisplayPort

        1



        NVIDIA Jetson Orin NX super與NVIDIA Jetson Orin Nano super模組的對比


        Jetson Orin NX super 16GB
        Jetson Orin NX super 8GB
        Jetson Orin Nano super 8GB
        Jetson Orin Nano super 4GB
        AI Performance
        157 TOPS
        117 TOPS
        67 TOPS 34 TOPS
        GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
        512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
        CPU 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU2MB L2 + 4MB L3
        6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3
        Memory 16GB 128-bit LPDDR5
        102.4GB/s
        8GB 128-bit LPDDR5
        102.4GB/s
        8GB 128-bit LPDDR5
        68 GB/s
        4GB 64-bit LPDDR5
        34 GB/s

        Storage

        -
        (Supports external NVMe)
        Video Encode
        1x 4K60 (H.265)
        3x 4K30 (H.265)
        6x 1080p60 (H.265)
        12x 1080p30 (H.265)
        1080p30 supported by 1-2 CPU cores

        Video Decode

        1x 8K30 (H.265)
        2x 4K60 (H.265)
        4x 4K30 (H.265)
        9x 1080p60 (H.265)
        18x 1080p30 (H.265)
        1x 4K60 (H.265)
        2x 4K30 (H.265)
        5x 1080p60 (H.265)
        11x 1080p30 (H.265)

        CSI Camera

        Up to 4 cameras (8 via virtual channels***)
        8 lanes MIPI CSI-2
        D-PHY 2.1 (up to 20Gbps)
        Up to 4 cameras (8 via virtual channels***)
        8 lanes MIPI CSI-2
        D-PHY 2.1 (up to 20Gbps)

        PCIe

        1 x4 + 3 x1
        (PCIe Gen4, Root Port, & Endpoint)
        1 x4 + 3 x1
        (PCIe Gen3, Root Port, & Endpoint)
        USB 3x USB 3.2 Gen2 (10 Gbps)
        3x USB 2.0
        3x USB 3.2 Gen2 (10 Gbps)
        3x USB 2.0

        Networking

        1x GbE
        Display 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
        1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**
        Other I/O 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
        3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
        PowerPower 10W - 25W
        10W - 20W
        7W - 15W
        7W - 10W
        Mechanical
        69.6mm x 45mm
        260-pin SO-DIMM connector
