* NVIDIA Jetson Carrier Board:
Design in small size of 98mm*76mm*42mm to save operation space, and maintain function in the temperature range from -20°C to 65℃
|
AI Performance
|
21 TOPS
|
|
GPU
|
384-core NVIDIA Volta? architecture GPU with 48 Tensor Cores
|
|
CPU
|
6-core NVIDIA Carmel Arm®v8.2 64-bit CPU
6MB L2 + 4MB L3 |
|
Memory
|
16GB 128-bit LPDDR4x
59.7GB/s |
|
Storage
|
16GB eMMC 5.1
|
|
Video Encode
|
2x 4K60 (H.265)
4x 4K30 (H.265) 10x 1080p60 (H.265) 22x 1080p30 (H.265) |
|
Video Decode
|
2x 8K30 (H.265)
6x 4K60 (H.265) 12x 4K30 (H.265) 22x 1080p60 (H.265) 44x 1080p30 (H.265) |
|
CSI Camera
|
Up to 6 cameras
(24 via virtual channels) 14 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps) |
|
Power
|
10W - 20W
|
|

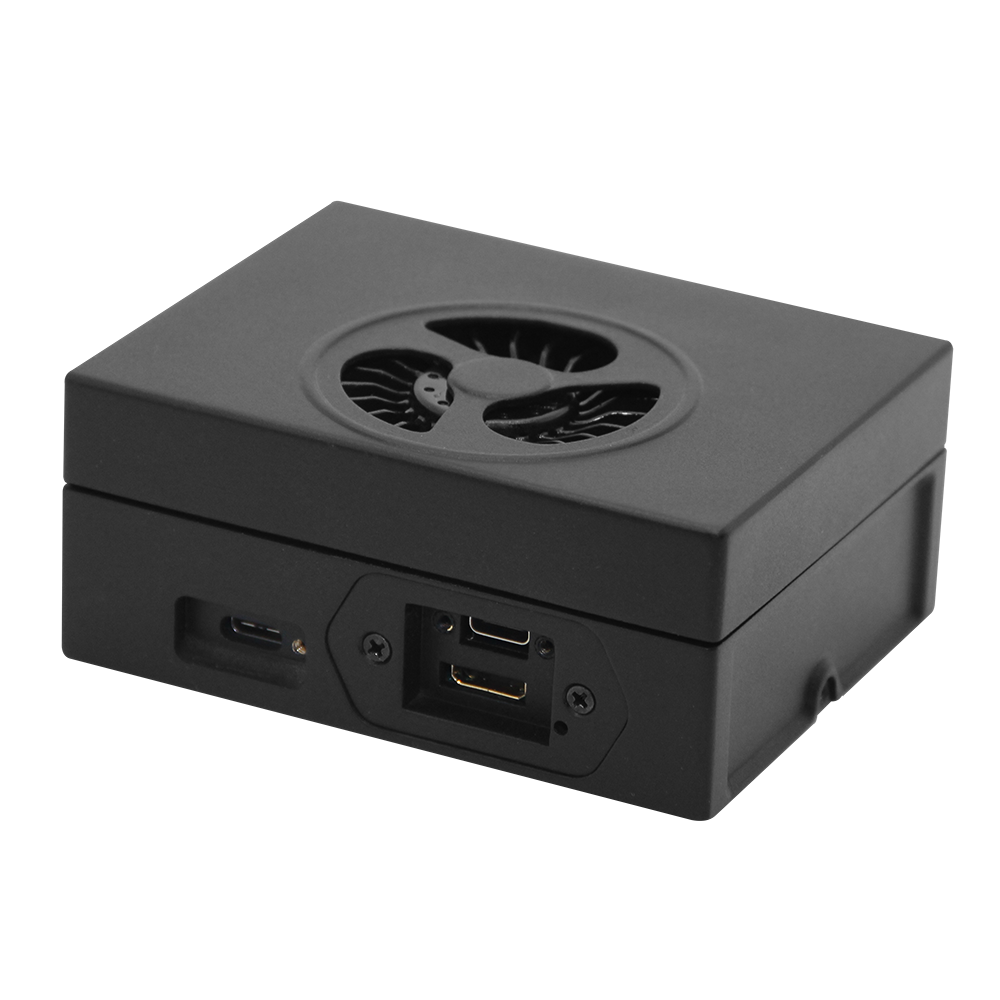

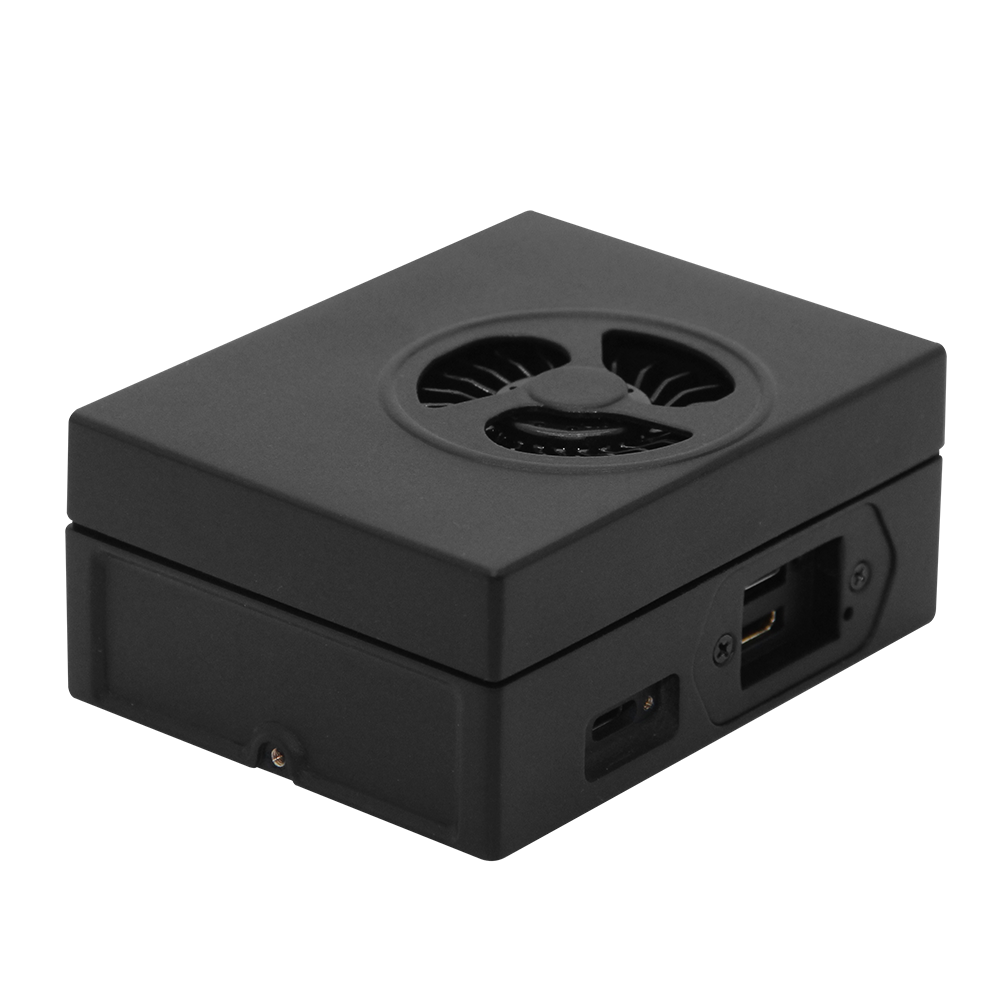

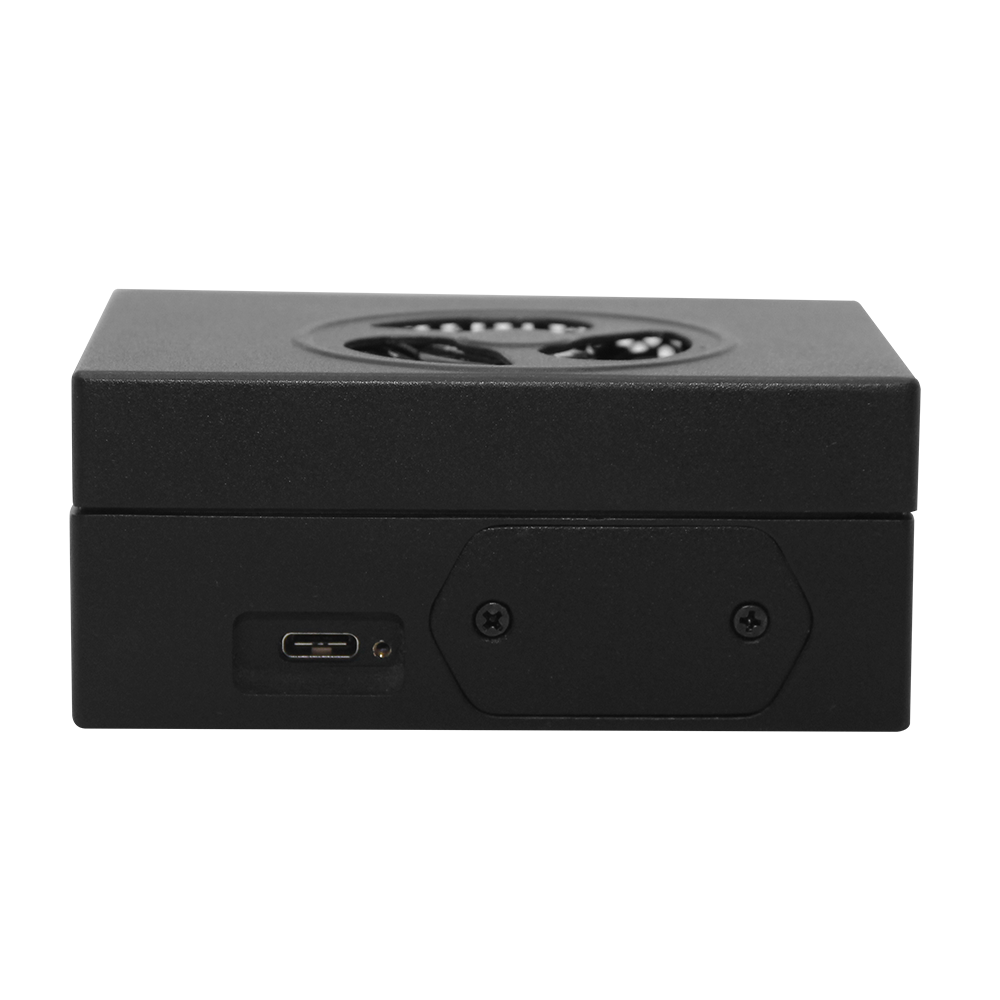

Product Name
|
NX16-7F4
|
|
Module
|
NVIDIA Jetson Xavier NX Modules
|
|
Type
|
Embedded Computer
|
|
Size
|
98mm*76mm*42mm
|
|
Weight
|
182g
|
|
Temperature
|
-20~+65°C
|
|
Power Supply
|
DC +9V～+24V
|
|
I/O
|

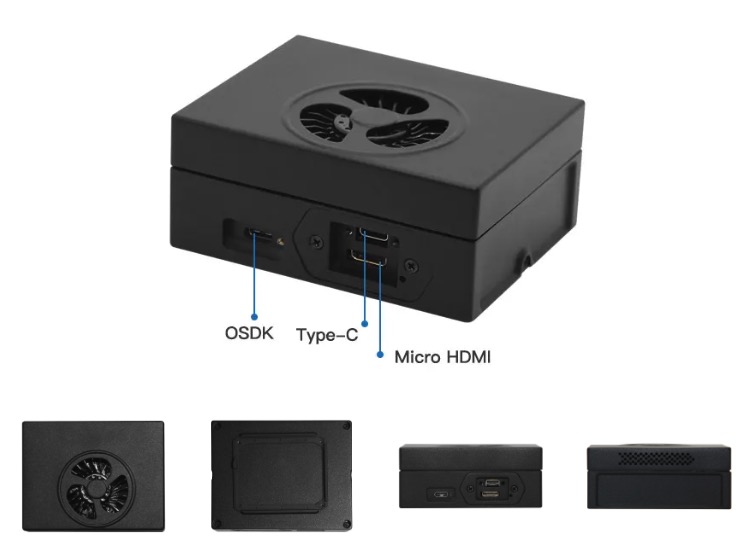

USB Type-C, Micro-HDMI,OSDK
|
